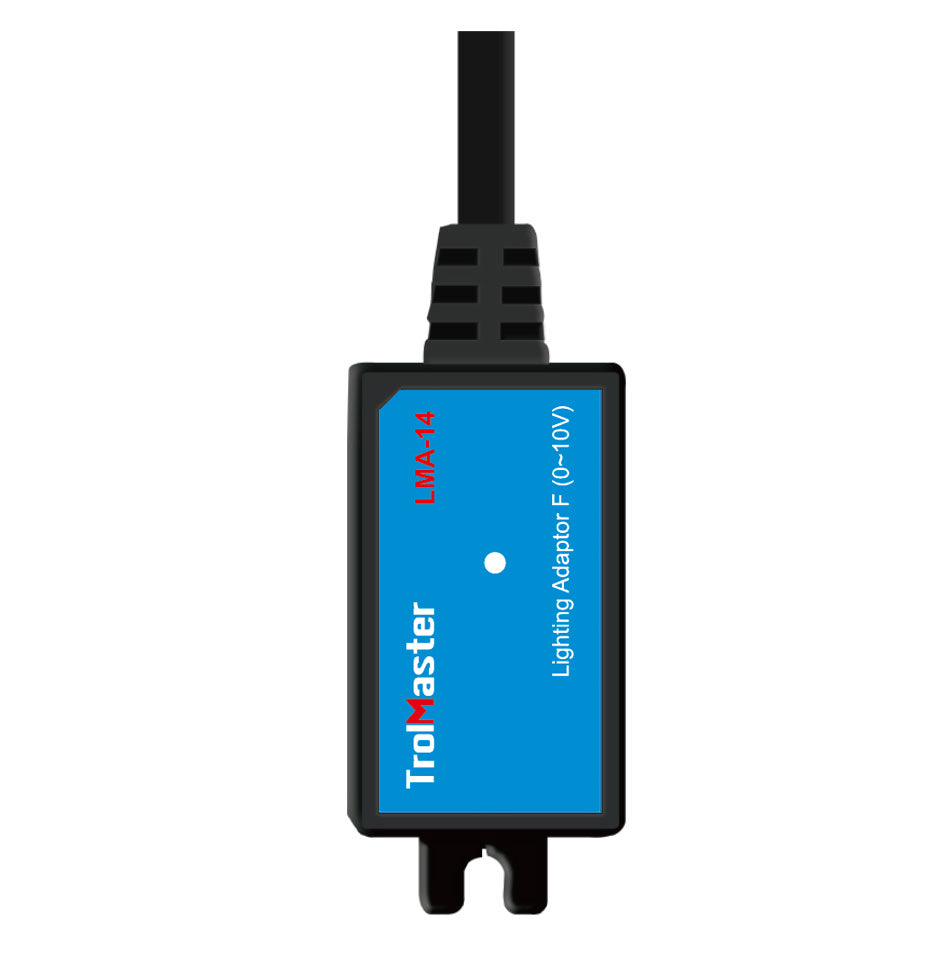

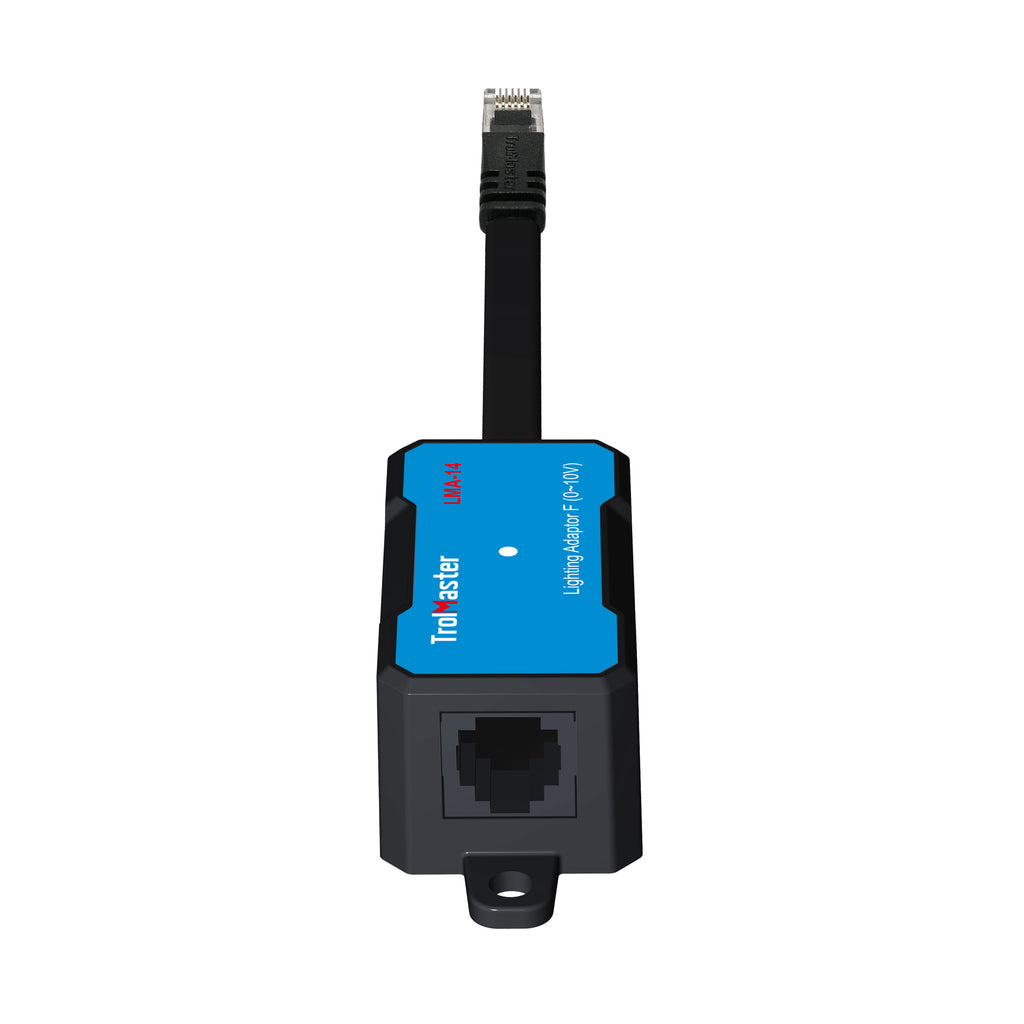

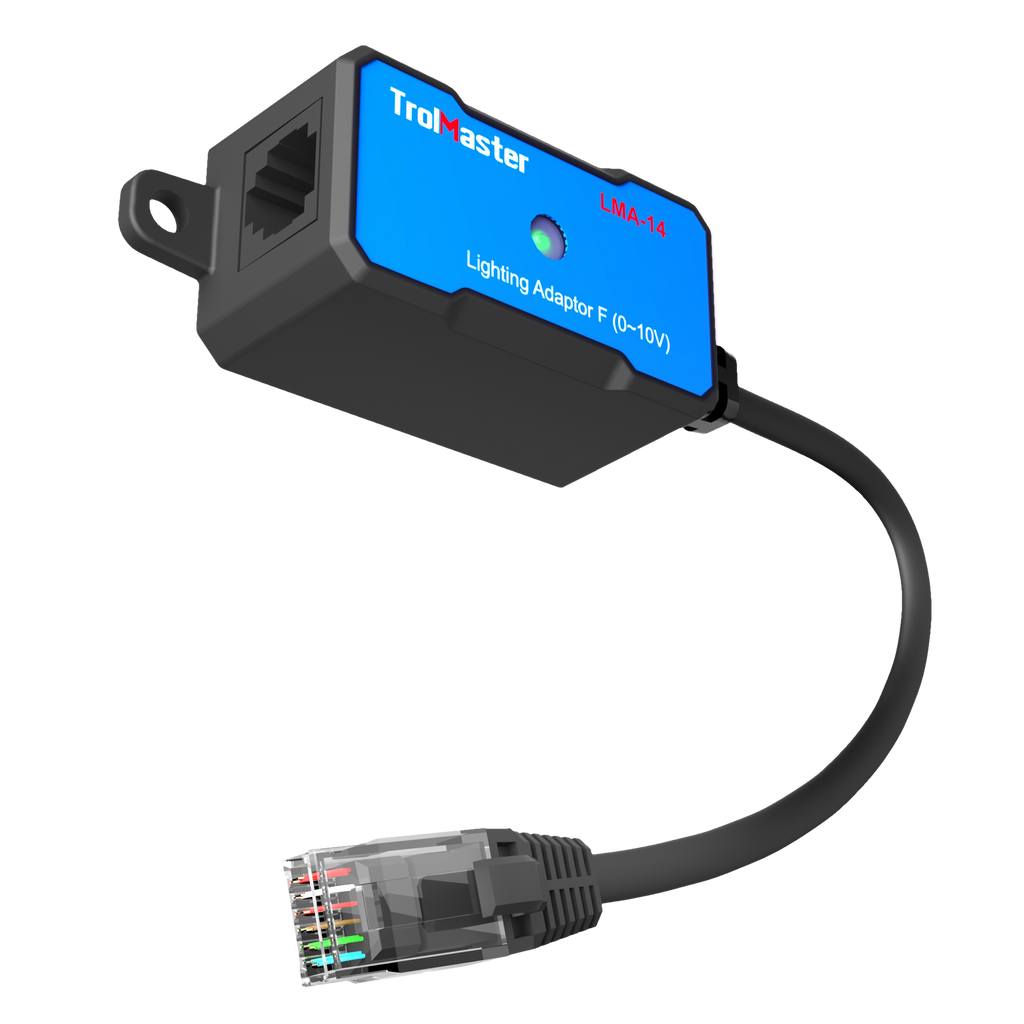

Lighting Control Adapter F （LMA-14）

TrolMaster’s Hydro-X system can control most of the horticultural lighting fixtures sold on the market today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

This LMA-14 lighting adapter is specially designed for the lights with 0-10V protocol control

HIDs: Gavita/Nanolux/Luxx/Growers Choice/Illuminar/PL

LEDs: Fluence/Next light/Photobio

NOTE: Each LMA-14 can control up to 40 HID lights or 24 LEDs. Additional LMA-14 adapters can be used with the SPH-1 to control as many lights as required.

*When using with Fluence Spyder 2x/2i fixtures @ 277v, no more than 12 LEDs per LMA-14

*When using with Aelius LEDs that are 277 volts or higher, no more than 12 LEDs per LMA-14

Features

• LED Power Indicator

• Convert Digital Signal to Analog Signal

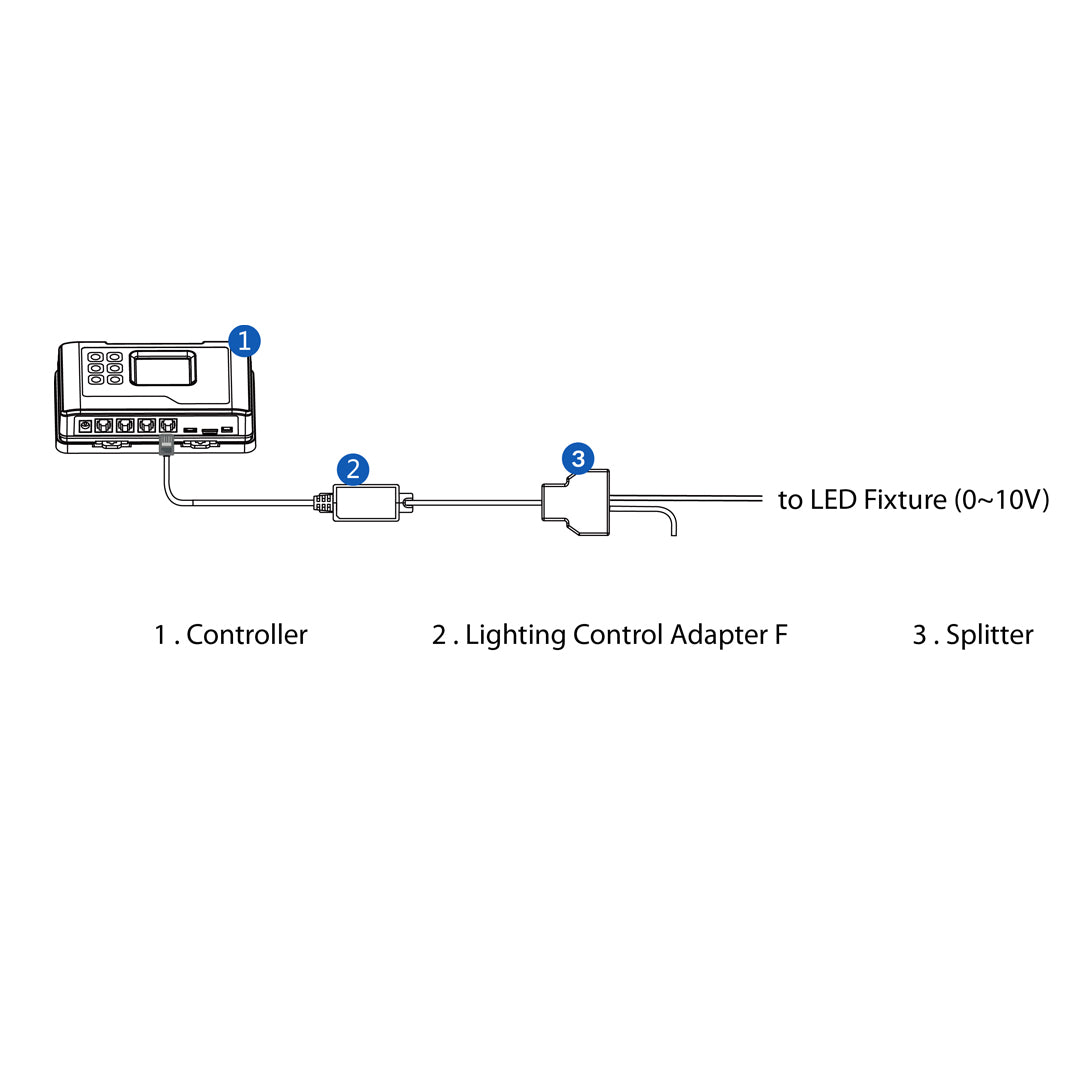

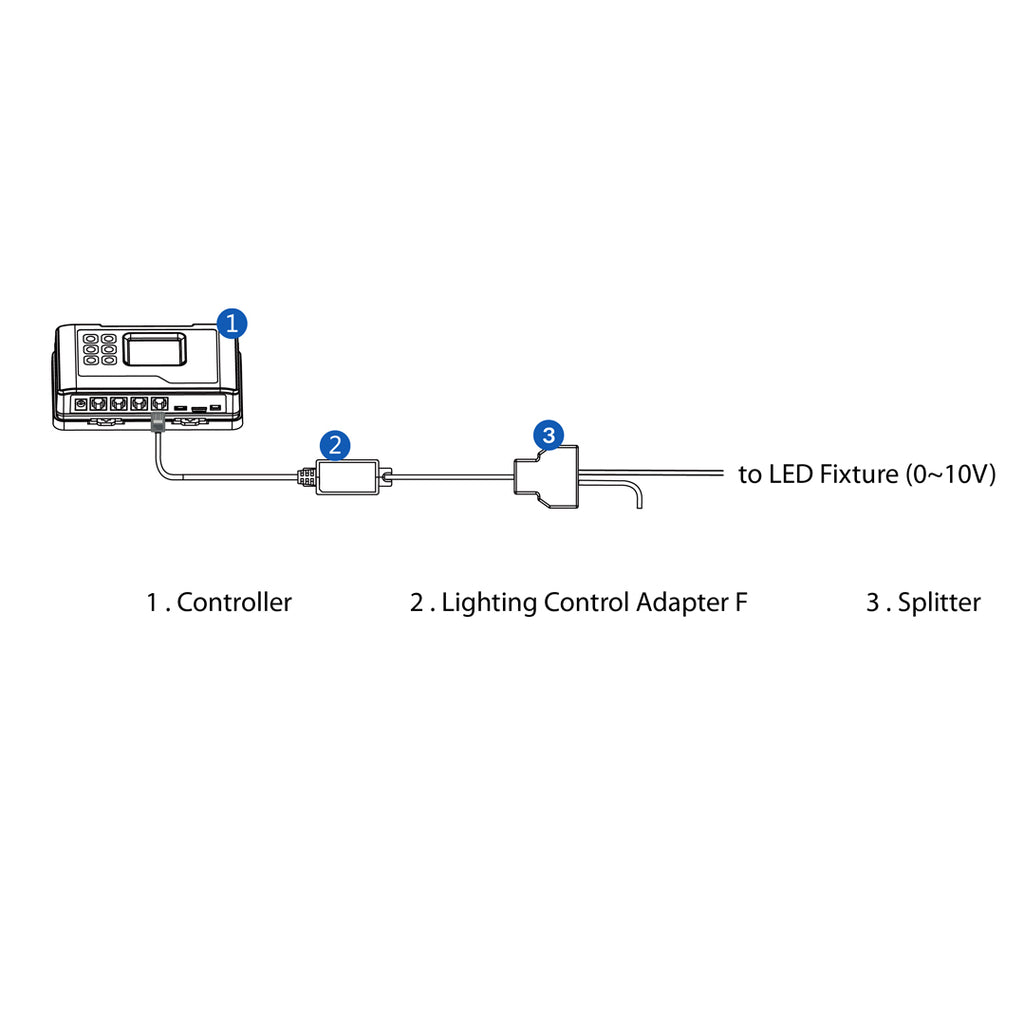

• Seamless Connection with Hydro-X with RJ12 Cable

• Plug & Play

Package Content

1 x Lighting Control Adapter F (LMA-14)

1 x RJ12 to Pigtail Connection Cable Set（ECS-2）

Specifications

Output Voltage:                          0~11.5V

Maximum Current:                     0.2A

Working Environments:            Temperature 32-122°F, Humidity=90%

Package Dimensions:              160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack:                          0.05kgs
