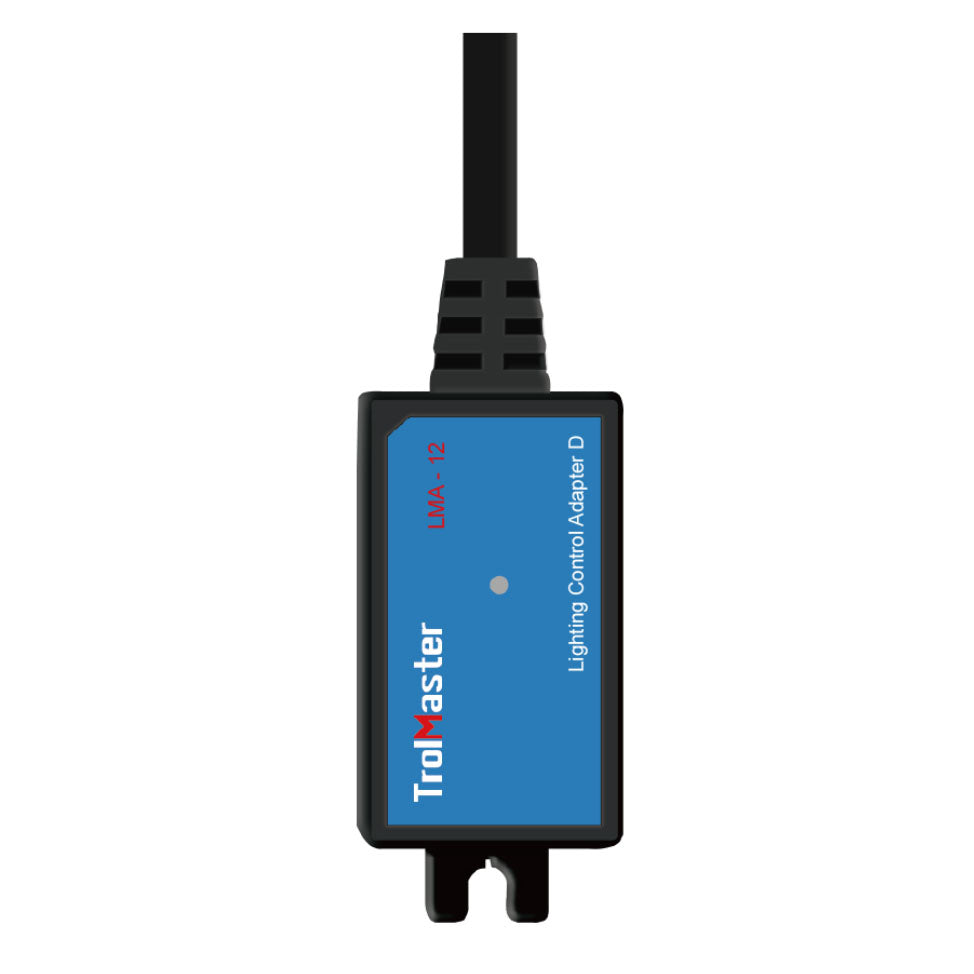

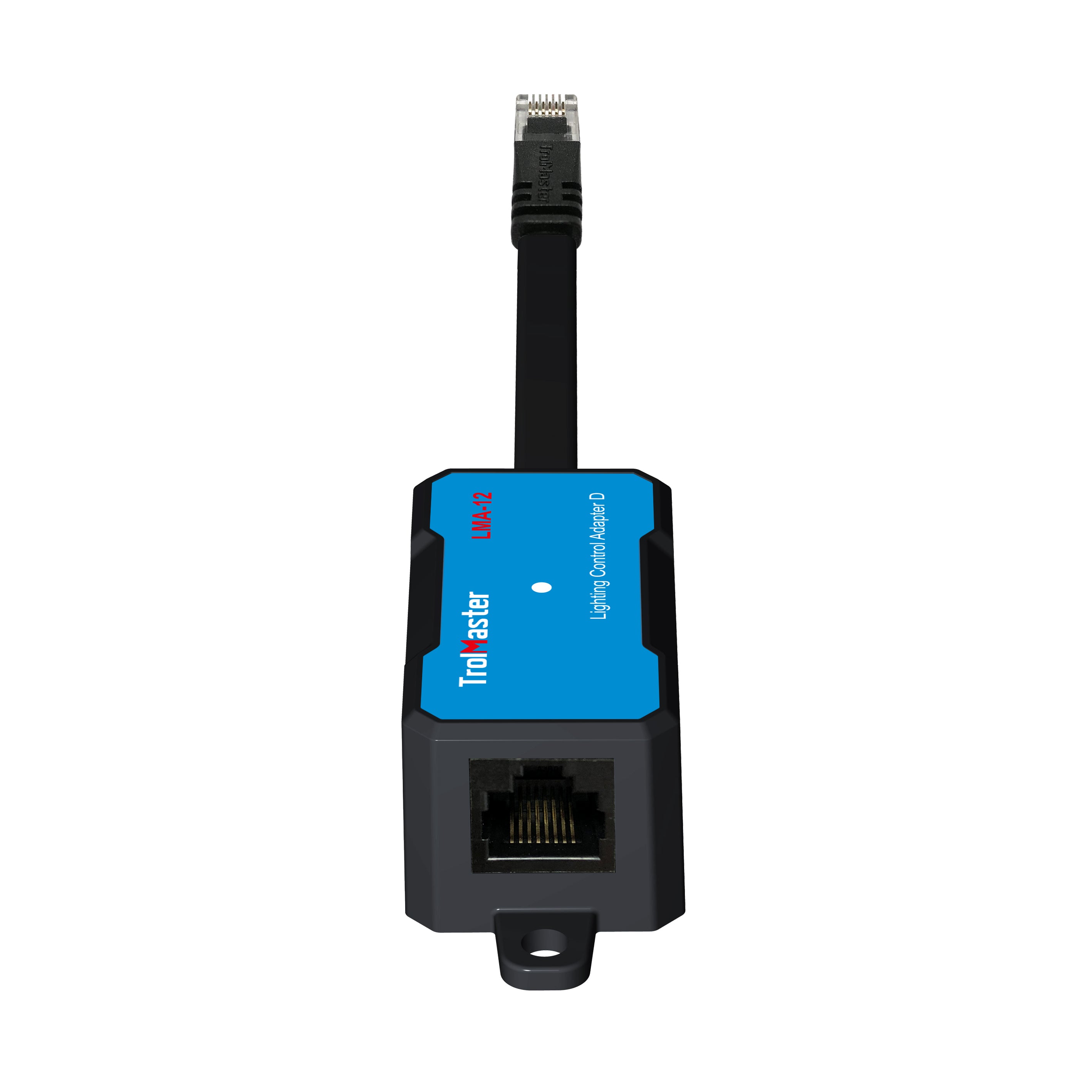

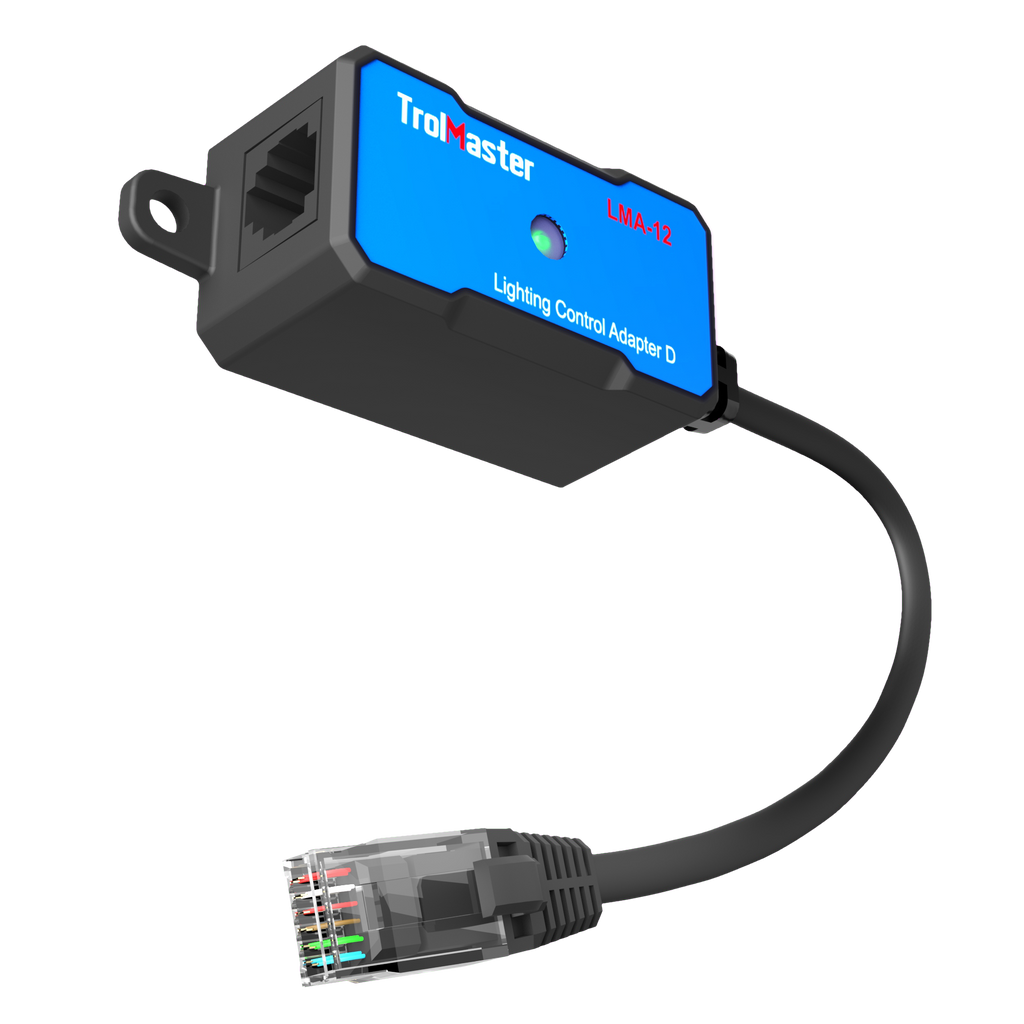

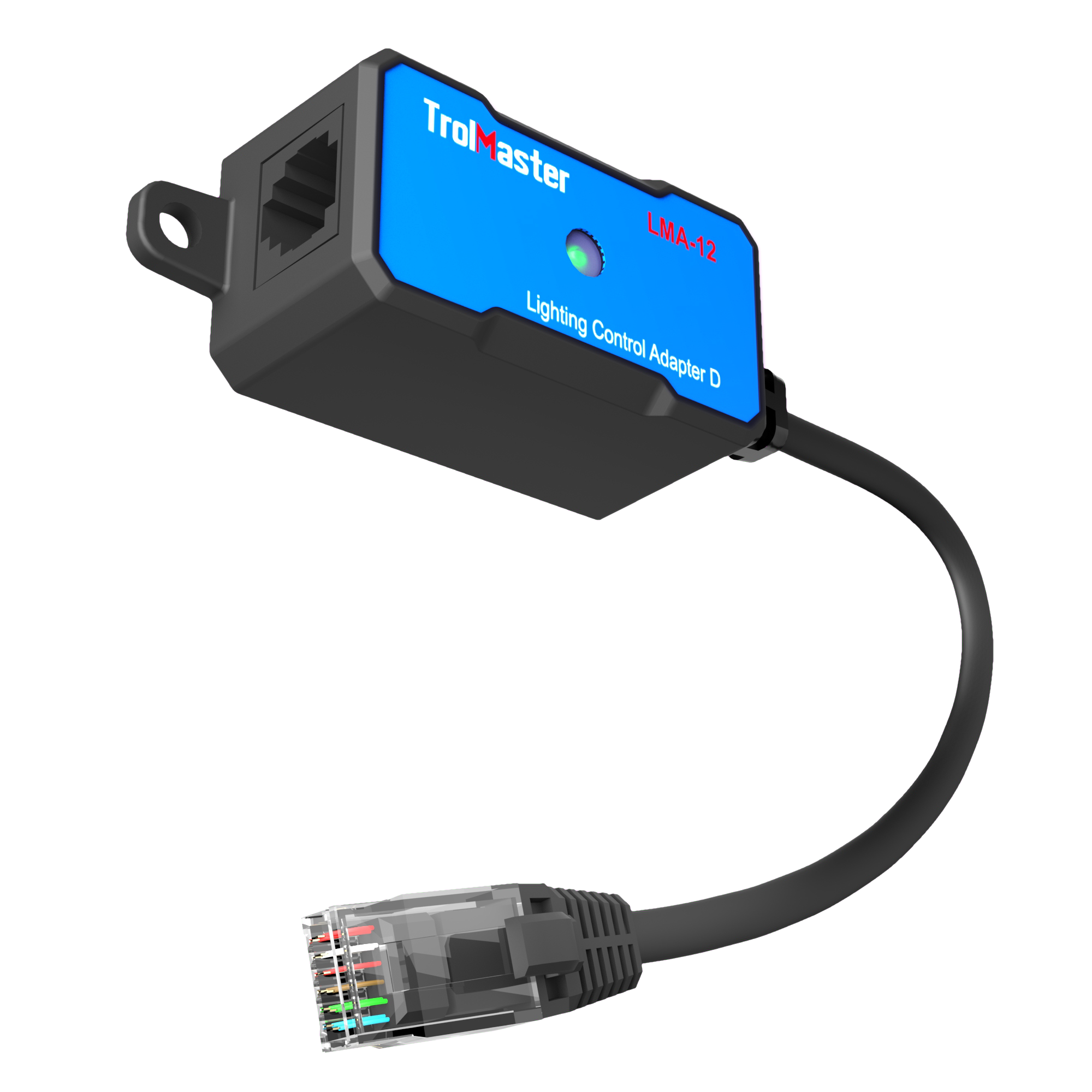

Lighting Control Adapter D（LMA-12）
TrolMaster’s Hydro-X system can control most of the horticultural lighting fixtures sold on the market today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.
This Lighting Control Adapter D (LMA-12) is specially designed for controlling Dimlux ballast.
Features
LED Power Indicator
Convert Digital Signal to Analog Signal

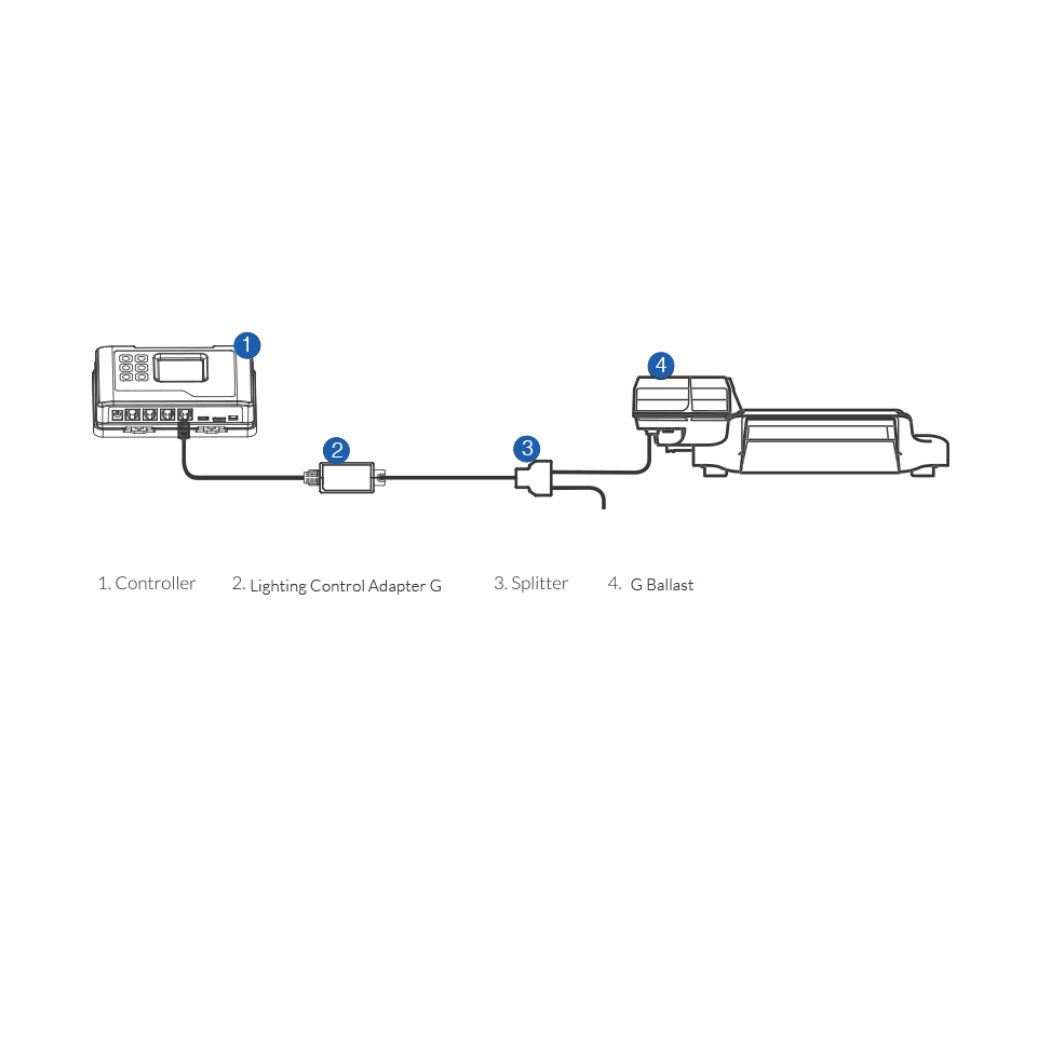

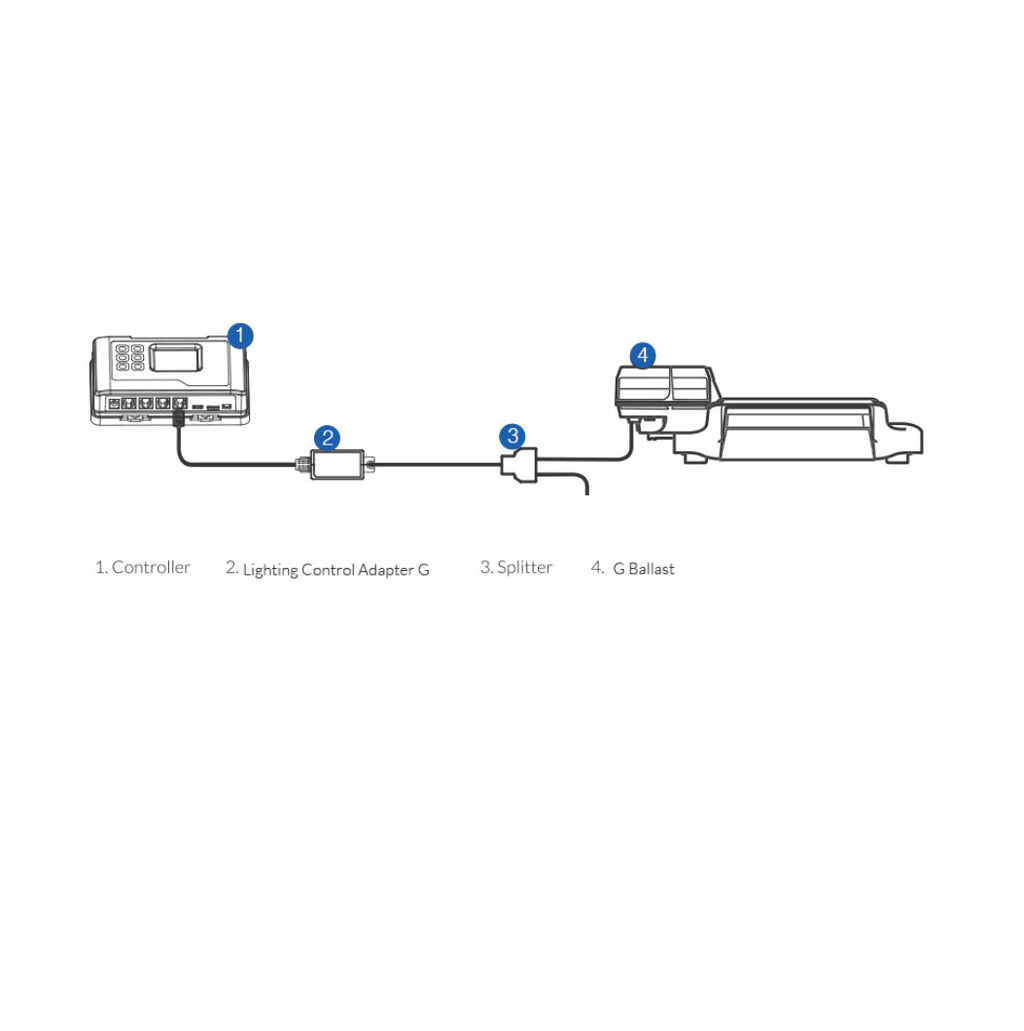

Seamless Connection with Hydro-X with RJ12 Cable
Plug & Play
Specifications
Output Voltage: 0~11.5V
Maximum Current: 0.2A
Working Environments: Temperature 32-122°F, Humidity=90%
Package Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
G.W. per pack: 0.05kgs
