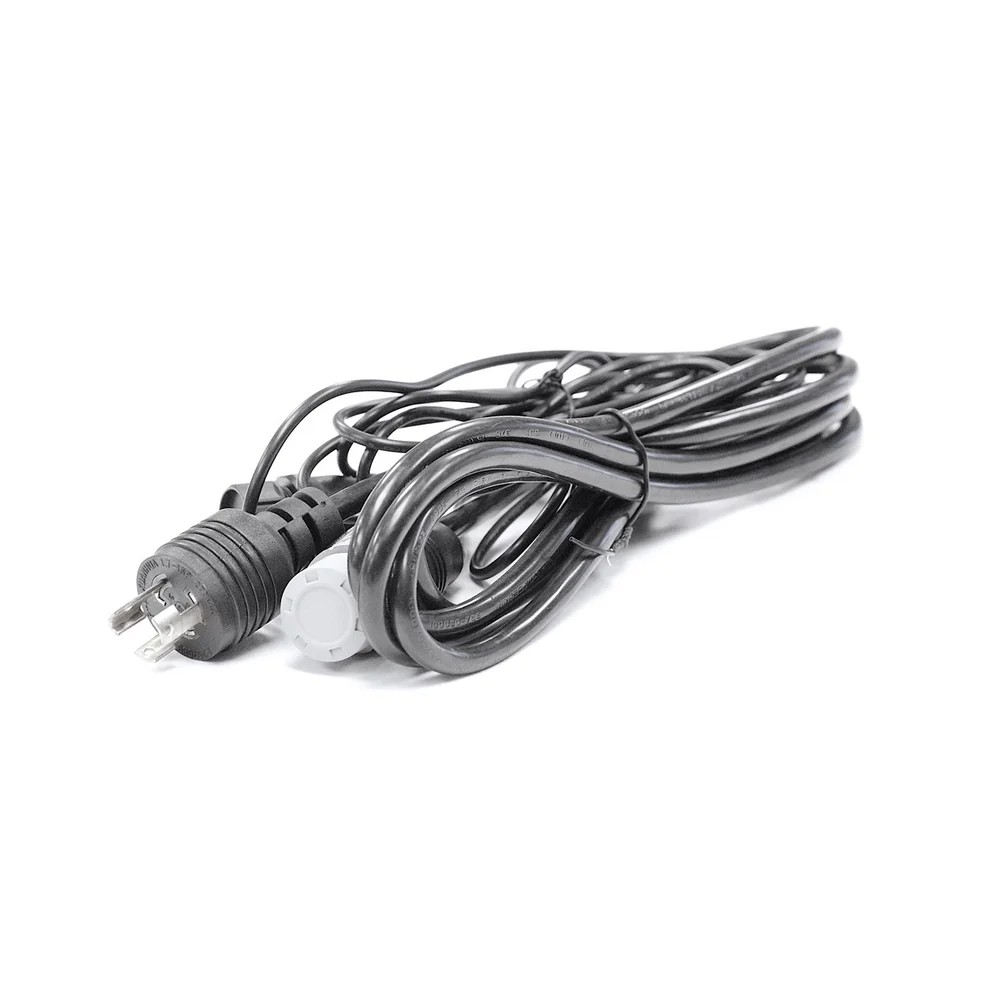

10 ft power cable for Faven under canopy LED lights. This cable works for both the R6 and R8 lights.
- 10’ cords
- Available in 120v/240v/277v
- 277v plug features Nema L7 connector
- Accessory dimming wire included
How many lights do I need?
Convert your bench length to inches, then divide by 46". That is how many lights each row can support.
Example:
14' bench length, 3 plants wide
14' x 12" = 168", 168" ÷ 46" = 3 lights (round down)
3 x 2 (available rows in-between plants) = 6 lights
How many power cords and extensions cards do I need?
Each bench requires at least one power cord. Depending on your total lights, you can daisy chain your rows with an extension. If you exceed max daisy-chain #, you will need two or more power cords per bench.
Max Daisy-Chain #
1.0 Amps - 10 lights - 120v
0.5 Amps - 17 lights - 240v
0.43 Amps - 20 lights -277v
Examples -
Scenario 1
240v, 6 lights per row, 2 rows of lights, 12 lights total = One 240v power cord and one extension cord per bench
Scenario 2
240v, 12 lights per row, 2 rows of lights, 24 total = Two 240v power cords per bench
Scenario 3
240v, 8 lights per row, 3 rows of lights, 24 total = Two 240v power cords and one extension per bench
